Delegation design
coconutnut
 2023-11-06 14:16:37

Per-CPU structure

For storing request info:

1
2
3
4
5
6
7
8
9
10
struct shadow_stack {
	struct qspinlock *lock;
  # indicate there is a request, write only by client
	# server iterates the array, checks this value, and process request
	bool active;
	bool completed;
	int cpu_id;
  void *ptr;
  uint64_t local_shadow_stack_ptr;
}

Each CPU will have a shadow stack

1
DEFINE_PER_CPU_SHARED_ALIGNED(struct shadow_stack, local_shadow_stack);

And server thread will a shadow stack

1
struct shadow_stack *server_ptr;

Question: server thread and some other threads might be on the same CPU. Will this be problematic?

Client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
void main(){
	swilock_delegate(lock);        # reuse spin_lock()
	...
	# CS
	...
	swilock_delegate_finish();     # reuse spin_unlock()
}

__swilock_delegate(struct qspinlock *lock)
{
    struct shadow_stack *ptr = this_cpu_ptr(&local_shadow_stack);
    ptr->lock = lock;
    ptr->completed = false;
    ptr->active = true;

    // Wait for server to process request
    while(ptr->completed == false);

    return 0;
}

void swilock_delegate(struct qspinlock *lock)
{
	// Main -> ephemeral stack
  ...

	ret_val = __swilock_delegate(lock);

	// Ephemeral -> main stack
  ...
}

void swilock_delegate_finish(struct qspinlock *lock){
	// Client -> server thread
	...

  return;
}

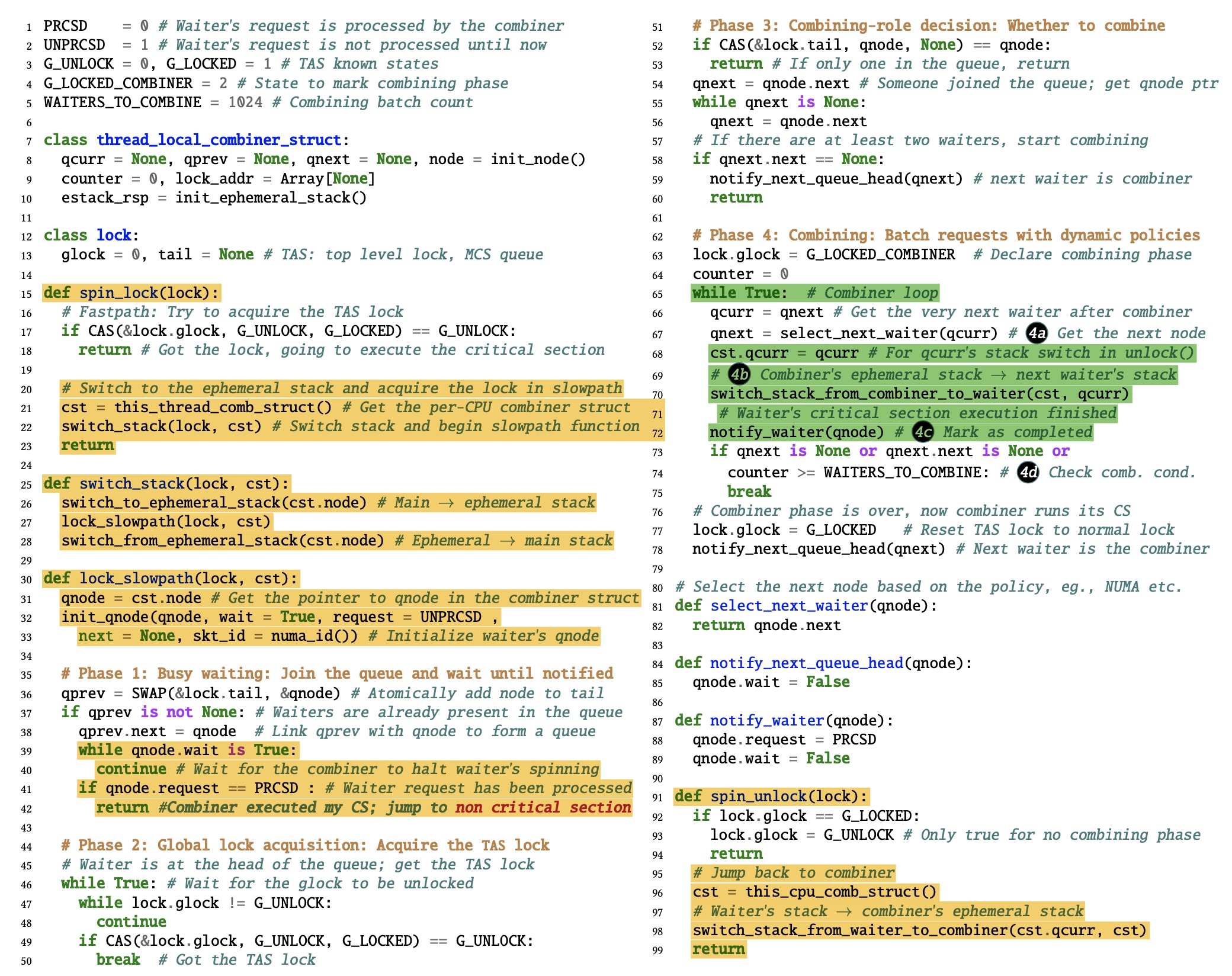

Can reuse TCLock code [Marked yellow]

Server

Reuse parts marked green

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
void init(){
	// Init shadow stack for each cpu
  ...
  // Init shadow stack for server thread
  ...
  // Start delegate server
  ...
}

void execute_request(struct shadow_stack *ptr){
	// Get TAS lock
	swi_lock(lock, TAS);
	// Server → client stack
	...
	// Client's critical section execution finished
  ptr->active = false;
	ptr->completed = true;

	// Release TAS lock
	swi_unlock(lock, TAS)
}

void swi_delegate_thread(){
	while(!kthread_should_stop()){
		// Ieterate through client reuqests
		for_each_possible_cpu (i) {
			// Check if has request
			if requests[i].active{
				execute_request(requests[i])
			}
		}
	}
}
