做了个初版试试水~😃

功能

点击寻路

靠近显示介绍

鼠标滚动前后平移

键盘前后左右平移

鼠标拖拽旋转视角

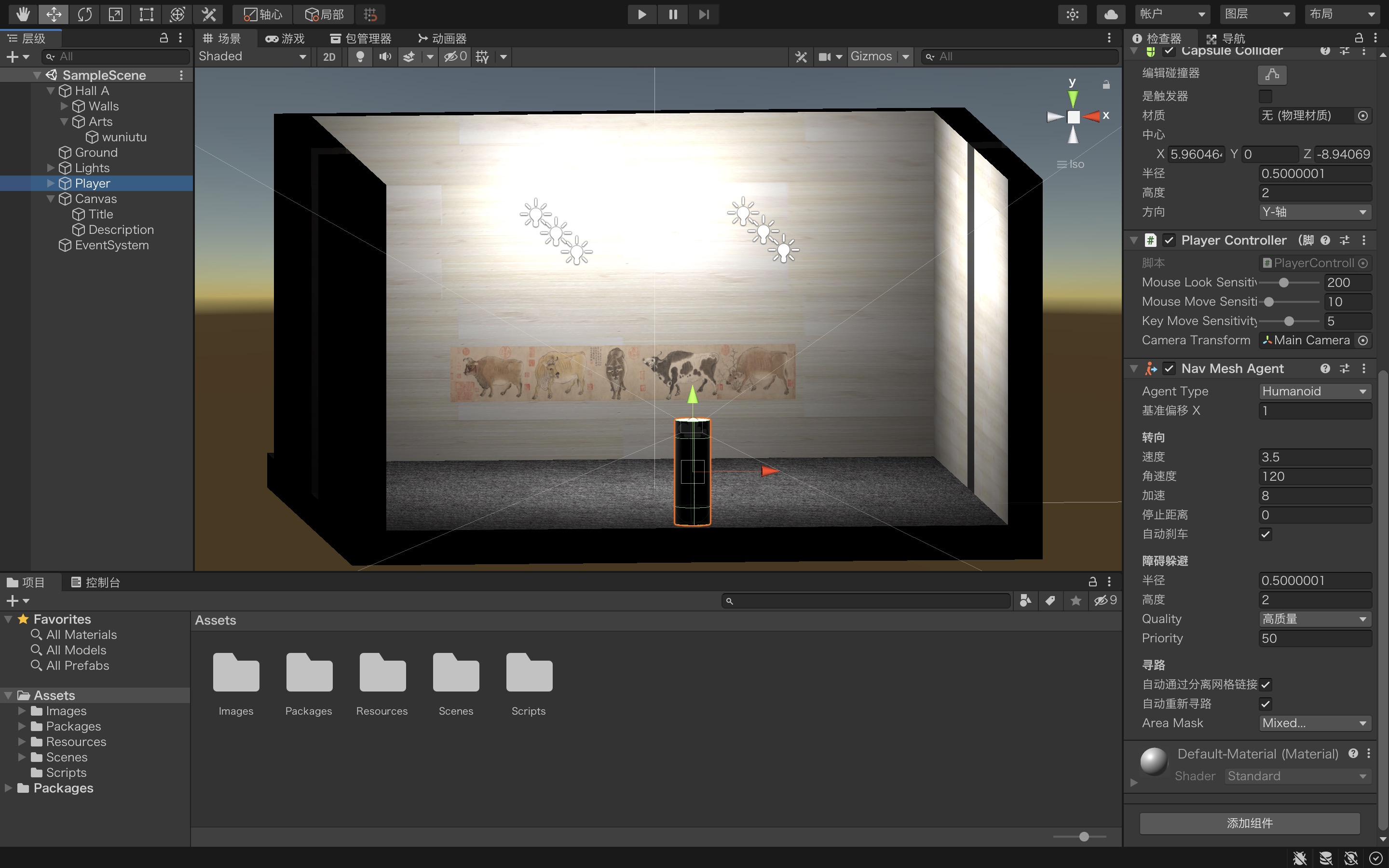

项目结构

代码

PlayerController

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class PlayerController : MonoBehaviour
{
    [SerializeField, Range(0f,500f)]
    private float mouseLookSensitivity = 200f;

    [SerializeField, Range(0f,100f)]
    private float mouseMoveSensitivity = 10f;

    [SerializeField, Range(0f,10f)]
    private float keyMoveSensitivity = 5f;

    [SerializeField]
    private Transform cameraTransform = null;

    private float cameraRotation = 0f;
    private int mouseDownCount = 0;

    UnityEngine.AI.NavMeshAgent agent;

    GameObject clickEffect;

    void Start()
    {
        agent = GetComponent<UnityEngine.AI.NavMeshAgent>();

        clickEffect = Resources.Load<GameObject>("Prefabs/ClickEffect");
    }

    void Update()
    {
        if(Input.GetMouseButtonUp(0)){
            // if is click
            if(mouseDownCount < 2){
                // click to navigate
                RaycastHit hit;
                Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
                if(Physics.Raycast(ray, out hit, Mathf.Infinity)){
                    // move when hit floor
                    if(hit.transform.tag == "Floor"){
                        agent.SetDestination(hit.point);

                        // click effect
                        GameObject clickEffectObject = Instantiate(clickEffect);
                        clickEffectObject.transform.position = hit.point;
                        Destroy(clickEffectObject, 1);
                    }
                }
            }
            mouseDownCount = 0;

        }else if(Input.GetMouseButton(0)){
            // stop navigation
            agent.ResetPath();

            // get mouse position
            float mouseX = Input.GetAxis("Mouse X") * mouseLookSensitivity * Time.deltaTime;
            float mouseY = Input.GetAxis("Mouse Y") * mouseLookSensitivity * Time.deltaTime;

            // rotate camera up and down
            cameraRotation -= mouseY;
            cameraRotation = Mathf.Clamp(cameraRotation, -30f, 30f);
            cameraTransform.localRotation = Quaternion.Euler(cameraRotation, 0f, 0f);

            // rotate player left and right
            transform.Rotate(Vector3.up * (mouseX));

            mouseDownCount++;

        }else if(Input.GetAxis("Mouse ScrollWheel")!=0 || Input.GetAxis("Horizontal")!=0 || Input.GetAxis("Vertical")!=0){
            // stop navigation
            agent.ResetPath();

            // mouse scroll input
            float mouseV = Input.GetAxis("Mouse ScrollWheel");
            // keyborad input
            float keyV = Input.GetAxis("Vertical");
            float keyH = Input.GetAxis("Horizontal");

            Vector3 move = transform.forward * (mouseV * mouseMoveSensitivity + keyV * keyMoveSensitivity)
                        + transform.right * keyH * keyMoveSensitivity;

            agent.Move(move * Time.deltaTime);
        }
    }
}

ArtTextController

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class ArtTextController : MonoBehaviour
{
    [SerializeField]
    private string title;

    [SerializeField]
    private string description;

    [SerializeField, Range(0f,10f)]
    private float displayTextDistance = 5f;

    private Transform playerTransform;

    private Text displayArtTitle;
    private Text displayArtDescription;

    private float dist;

    private bool check;

    void Start()
    {
        // get player transform
        playerTransform = GameObject.FindWithTag("Player").GetComponent<Transform>();

        // get UI text
        displayArtTitle = GameObject.FindWithTag("ArtTitle").GetComponent<Text>();
        displayArtDescription = GameObject.FindWithTag("ArtDescription").GetComponent<Text>();

        // set default text
        displayArtTitle.text = "";
        displayArtDescription.text = "";

        check = false;
    }

    // Update is called once per frame
    void Update()
    {
        if(playerTransform)
        {
            // distance between art and player
            dist = Vector3.Distance(transform.position, playerTransform.position);
            if (dist < displayTextDistance)
            {
                displayArtTitle.text = title;
                displayArtDescription.text = description;
                check = true;
            }
            // turn off display
            if (dist > displayTextDistance && check == true)
            {
                Start();
            }
        }
    }
}

构建测试

MacOS 没问题

Android 试了一下，场景没问题，操作混乱

安卓导出参考AR Foundation笔记01 安卓Setup

目前的操作方式针对电脑，手机端以后再看要不要做

WebGL 整了半天

参考WebGL Export in Unity 2020

成功发布到itch.io，但是靠近显示介绍没有了？

本地Firefox打开，也没有

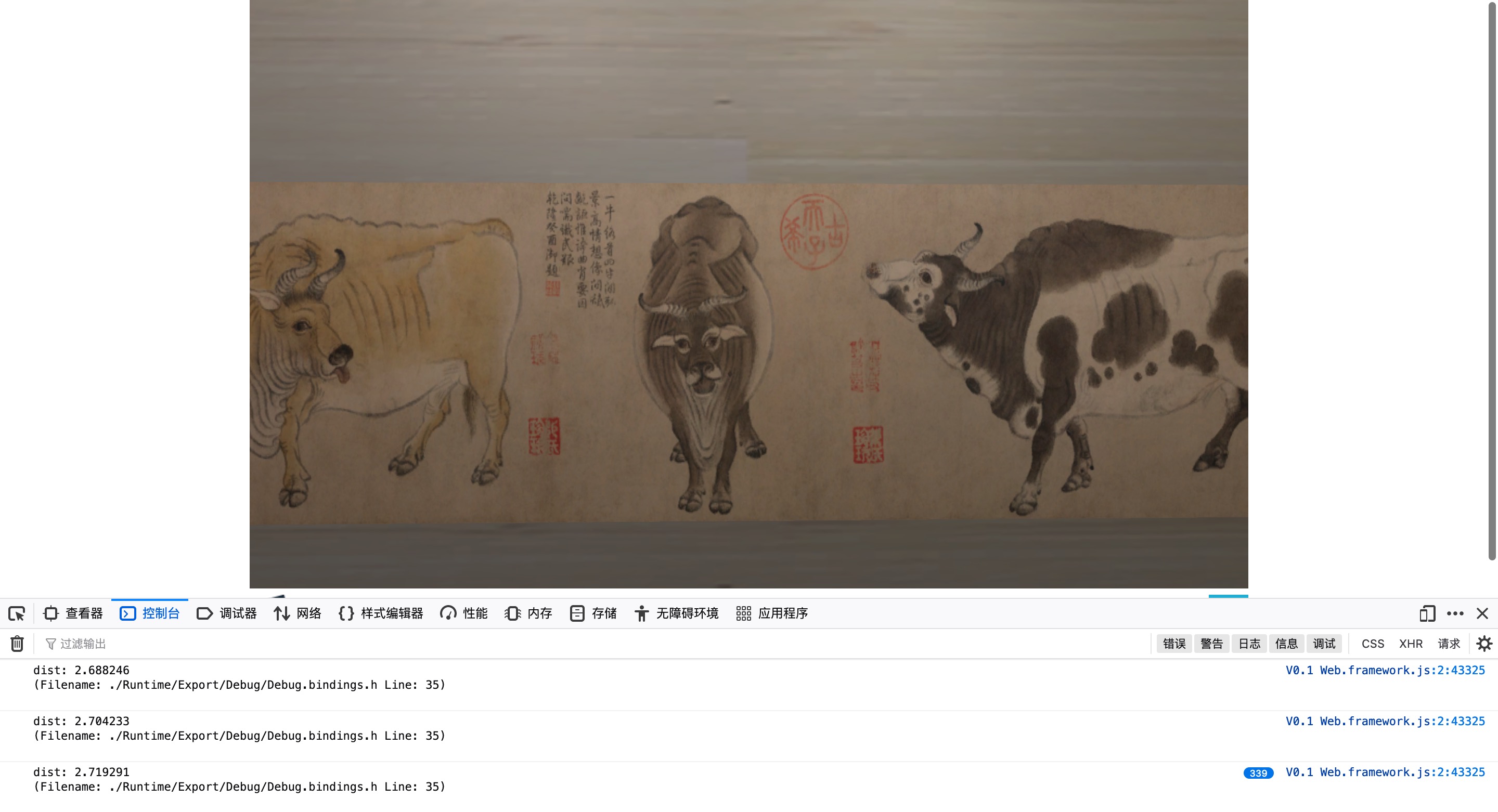

WebGL Debug

Unity里跑没问题

Debug.Log人物和画的距离，可以显示，所以可能是

UI显示出了问题

文字没有赋值成功

位置偏了

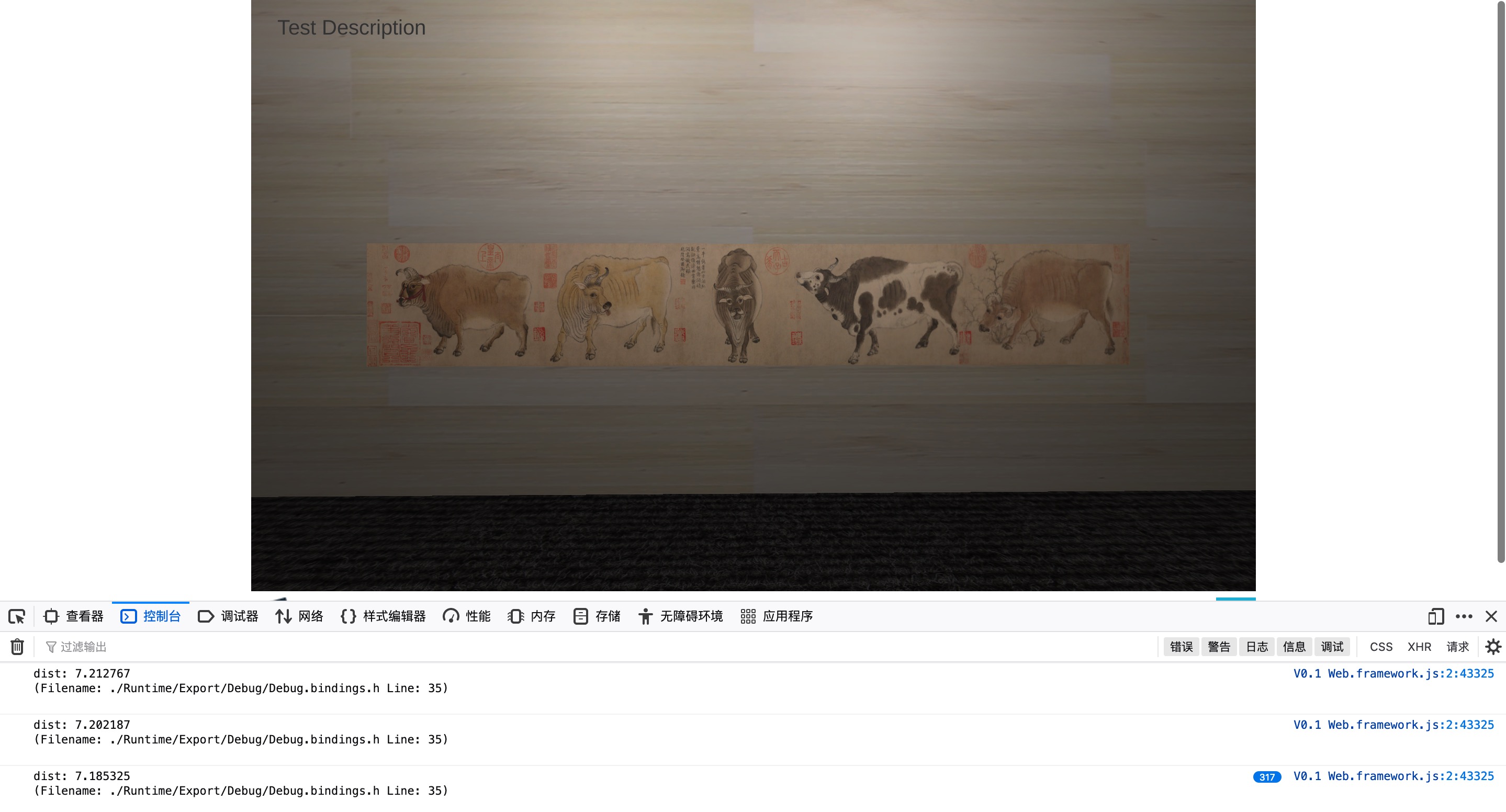

给Text设了默认值，再试

默认值显示了

靠近没有了

所以应该是位置不对
