Vue笔记07 总结
coconutnut
 2020-03-17 17:09:39

这个教程6p学完了～总结一下这个图书增删改查的demo

https://www.bilibili.com/video/av85793766

工程创建略
数据库部分略

后端

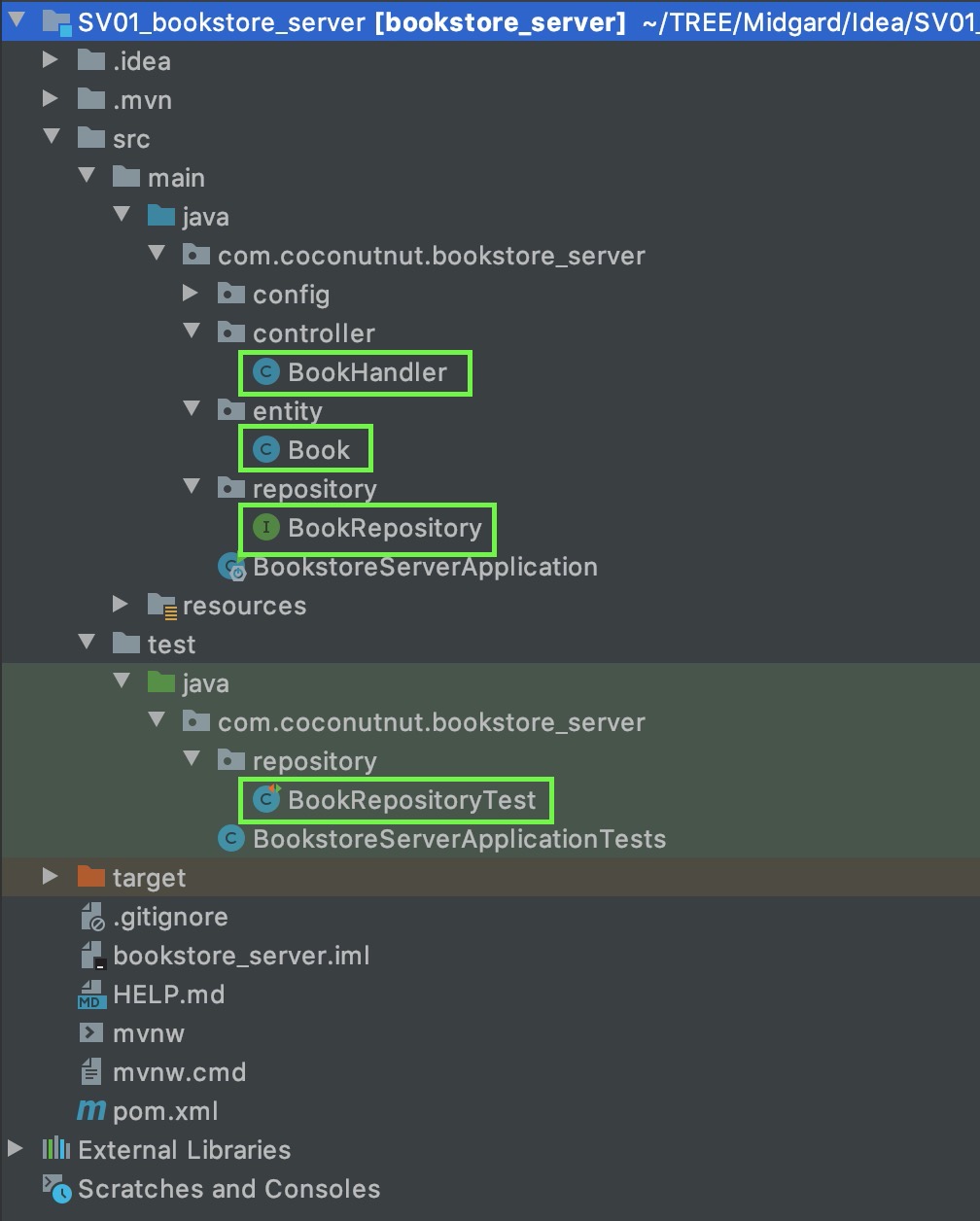

项目结构

  • Book 实体类
  • BookRepository 继承JpaRepository，提供数据库增删改查接口
  • BookHandler 相应请求
  • BookRepositoryTest 测试BookRepository的方法

Book

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
package com.coconutnut.bookstore_server.entity;

import lombok.Data;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

@Entity // 根据类名和表名对应绑定
@Data   // 自动生成get/set
public class Book {
    @Id // 主键
    @GeneratedValue(strategy = GenerationType.IDENTITY) // id自增
    private Integer id;
    private String name;
    private String author;
}

BookRepository

1
2
3
4
5
6
7
8
package com.coconutnut.bookstore_server.repository;

import com.coconutnut.bookstore_server.entity.Book;
import org.springframework.data.jpa.repository.JpaRepository;

// <>中第一个是实体类，第二个是主键类型
public interface BookRepository extends JpaRepository<Book,Integer> {
}

JpaRepository中有常用的增删改查方法，可以直接调用

& 通常流程：先在Test中测试方法，没问题在Controller中写对外接口，浏览器看一下返回值对不对，最后写前端

Spring工程自带一个测试类BookstoreServerApplicationTests
自己创建可在接口名上右键->Go To->Test->Create New Test
生成的测试类加@SpringBootTest，要测试的类@Autowired自动注入，写的方法加@Test即可

BookHandler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
package com.coconutnut.bookstore_server.controller;

import com.coconutnut.bookstore_server.entity.Book;
import com.coconutnut.bookstore_server.repository.BookRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/book")
public class BookHandler {

    @Autowired
    private BookRepository bookRepository;

    // 查所有书
    @GetMapping("/findAll")
    public List<Book> findAll(){
        return bookRepository.findAll();
    }

    // 查一页
    @GetMapping("/findAll/{page}/{size}")
    // @PathVariable获取参数
    public Page<Book> findAll(@PathVariable("page") Integer page,@PathVariable("size") Integer size){
        PageRequest pageRequest = PageRequest.of(page,size);
        return bookRepository.findAll(pageRequest);
    }

    // 新增
    @PostMapping("/save")
    // @RequestBody把json格式转成java对象
    public String save(@RequestBody Book book){
        Book result = bookRepository.save(book);
        if(result != null){
            return "success";
        }else{
            return "error";
        }
    }

    // 查一个
    @GetMapping("/findById/{id}")
    public Book findById(@PathVariable("id") Integer id){
        return bookRepository.findById(id).get();
    }

    // 修改
    @PutMapping("/update")
    public String update(@RequestBody Book book){
        Book result = bookRepository.save(book);
        if(result != null){
            return "success";
        }else{
            return "error";
        }
    }

    // 删除
    @DeleteMapping("/deleteById/{id}")
    public void deleteById(@PathVariable("id") Integer id){
        bookRepository.deleteById(id);
    }

}

前端

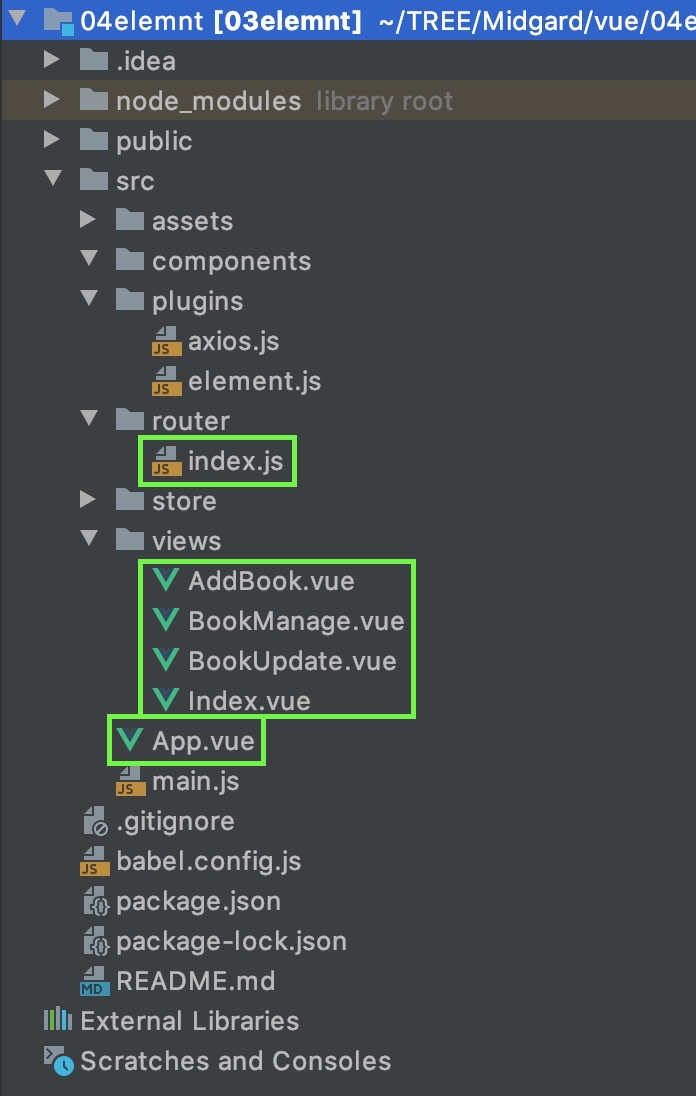

项目结构

  • Index.js 配路由
  • App.vue 常驻的页面
  • 其它vue 嵌入的页面

index.js

配置页面的从属关系与路径

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
import Vue from 'vue'
import VueRouter from 'vue-router'
import Index from "../views/Index";
import BookManage from '../views/BookManage'
import AddBook from '../views/AddBook'
import BookUpdate from '../views/BookUpdate'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: '图书管理',
    show: true,
    component:Index,
    redirect:'book-manage',
    children:[
      {
        path: '/book-manage',
        name: '查询图书',
        component: BookManage
      },
      {
        path: '/add-book',
        name: '添加图书',
        component: AddBook
      },
    ]
  },
  {
    path: '/book-update',
    name: '修改',
    show: false,
    component: BookUpdate
  },
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router

页面嵌套与跳转

App.vue中template结构

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<template>
  <div id="app">
    <el-container>

      <el-aside>
        <el-menu>
          <!-- ... -->
        </el-menu>
      </el-aside>

      <el-main>
        <router-view></router-view>
      </el-main>

    </el-container>
  </div>
</template>
1
2
3
4
5
6
7
8
9
+------------------------------------+
| App                                |
| +------+-------------------------+ |
| | menu | main                    | |
| |      | +---------------------+ | |
| |      | | router-view         | | |
| |      | +---------------------+ | |
| +------+-------------------------+ |
+------------------------------------+

左侧aside区域中放menu，右侧main中由router动态加载

Index.vue中template结构

1
2
3
<template>
    <router-view></router-view>
</template>

Index.vue中其它都是默认的

根据index.js中的配置，’/‘就加载Index.vue到App.vue的router-view区域，再’/book-manage’加载Index.vue的router-view区域。而Index重定向到book-manage，于是’http:localhost:4000/‘默认就显示了book-manage

而’/book-update’加载Update.vue到App.vue的router-view区域

故显示所有子页面的时候都可以看到菜单

根据routes配置动态加载菜单栏 -> App.vue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
<template>
  <div id="app">
    <el-container style="height: 500px; border: 1px solid #eee">

      <el-aside width="200px" style="background-color: rgb(238, 241, 246)">
        <!--            这里添加router标签，el-menu-item的index就会被作为router路径-->
        <el-menu router :default-openeds="['0','1']">
          <!--          show属性为true则遍历-->
          <el-submenu v-for="(item,index) in $router.options.routes" :index="index+''" v-if="item.show">
            <template slot="title"><i class="el-icon-setting"></i>{{item.name}}</template>
            <!--                    条件判断当前路径是否等于index，更改选中状态，主要是在初始化时增加默认的选中状态-->
            <el-menu-item v-for="item2 in item.children" :index="item2.path" :class="$route.path==item2.path ? 'is-active' : ''">{{item2.name}}</el-menu-item>
          </el-submenu>
        </el-menu>
      </el-aside>

      <el-main>
        <!--            上面又index确定的router被显示在这里，也就是main区域中-->
        <router-view></router-view>
      </el-main>

    </el-container>
  </div>
</template>

<script>
export default {
  name: 'app',
}
</script>

<style>
#app {
  font-family: 'Avenir', Helvetica, Arial, sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
  margin-top: 60px;
}
</style>

表单显示所有书籍、翻页、删除 -> BookManage.vue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
<template>
    <div>
    <el-table
            :data="tableData"
            border
            style="width: 100%">
        <el-table-column
                fixed
                prop="id"
                label="编号"
                width="150">
        </el-table-column>
        <el-table-column
                prop="name"
                label="书名"
                width="150">
        </el-table-column>
        <el-table-column
                prop="author"
                label="作者"
                width="150">
        </el-table-column>
        <el-table-column>
<!--                fixed="right"-->
                label="操作"
                width="100">
            <template slot-scope="scope">
                <el-button @click="edit(scope.row)" type="text" size="small">修改</el-button>
                <el-button @click="deleteBook(scope.row)" type="text" size="small">删除</el-button>
            </template>
        </el-table-column>
    </el-table>
    <el-pagination
            background
            layout="prev, pager, next"
            :page-size="pageSize"
            :total="total"
            @current-change="clickPage">
    </el-pagination>
    </div>
</template>

<script>
    export default {
        methods: {
            // 删除
            deleteBook(row) {
                const _this = this
                axios.delete('http://localhost:8181/book/deleteById/'+row.id).then(function(resp){
                    // 这里没有管返回信息，也可以判断状态，200就是成功
                    _this.$alert('《'+row.name+'》删除成功！', '消息', {
                        confirmButtonText: '确定',
                        callback: action => {
                            // 刷新
                            window.location.reload()
                        }
                    })
                })
            },
            // 跳转到编辑
            edit(row) {
                // this.$router.push('/book-update')
                this.$router.push({
                    path: '/book-update',
                    query: {
                        id: row.id
                    }
                })
            },
            // 翻页
            clickPage(index){
                const _this = this
                axios.get('http://localhost:8181/book/findAll/'+(index-1)+'/6').then(function(resp){
                    _this.tableData = resp.data.content
                    _this.pageSize = resp.data.size
                    _this.total = resp.data.totalElements
                })
            },
        },

        data() {
            return {
                pageSize:'6',
                total:'',
                tableData:''
            }
        },

        // 加载书籍信息到表单
        created(){
            const _this = this
            axios.get('http://localhost:8181/book/findAll/0/6').then(function(resp){
                _this.tableData = resp.data.content
                _this.pageSize = resp.data.size
                _this.total = resp.data.totalElements
            })
        }
    }
</script>

<style scoped>

</style>

新增 -> AddBook.vue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
<template>
<!--    model设置数据绑定，rules设置校验规则，ref是名字，在提交时使用-->
<el-form style="width: 60%" :model="ruleForm" :rules="rules" ref="ruleForm" label-width="100px" class="demo-ruleForm">
    <el-form-item label="书名" prop="name">
        <el-input v-model="ruleForm.name"></el-input>
    </el-form-item>
    <el-form-item label="作者" prop="author">
        <el-input v-model="ruleForm.author"></el-input>
    </el-form-item>
    <el-form-item>
        <el-button type="primary" @click="submitForm('ruleForm')">立即创建</el-button>
        <el-button @click="resetForm('ruleForm')">重置</el-button>
    </el-form-item>
</el-form>
</template>

<script>
    export default {
        data() {
            return {
                ruleForm: {
                    name: '',
                    author: '',
                },
                rules: {
                    name: [
                        { required: true, message: '请输入书名', trigger: 'blur' },
                    ],
                    author: [
                        { required: true, message: '请输入作者', trigger: 'blur' },
                    ],
                }
            };
        },
        methods: {
            // 提交表单
            submitForm(formName) {
                const _this = this
                this.$refs[formName].validate((valid) => {
                    if (valid) {
                        axios.post('http://localhost:8181/book/save',this.ruleForm).then(function(resp){
                            if(resp.data == 'success'){
                                _this.$message({
                                    message: '《'+_this.ruleForm.name+'》'+'添加成功',
                                    type: 'success'
                                })
                                _this.$router.push('/book-manage')
                            }
                        })
                    }
                });
            },
            // 重置表单
            resetForm(formName) {
                this.$refs[formName].resetFields();
            }
        }
    }
</script>

修改 -> BookUpdate.vue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
<template>
    <!--    model设置数据绑定，rules设置校验规则，ref是名字，在提交时使用-->
    <el-form style="width: 60%" :model="ruleForm" :rules="rules" ref="ruleForm" label-width="100px" class="demo-ruleForm">
        <el-form-item label="编号">
            <el-input v-model="ruleForm.id" readonly></el-input>
        </el-form-item>
        <el-form-item label="书名" prop="name">
            <el-input v-model="ruleForm.name"></el-input>
        </el-form-item>
        <el-form-item label="作者" prop="author">
            <el-input v-model="ruleForm.author"></el-input>
        </el-form-item>
        <el-form-item>
            <el-button type="primary" @click="submitForm('ruleForm')">修改</el-button>
            <el-button @click="submitForm('ruleForm')">重置</el-button>
        </el-form-item>
    </el-form>
</template>

<script>
    export default {
        data() {
            return {
                ruleForm: {
                    id: '',
                    name: '',
                    author: '',
                },
                rules: {
                    name: [
                        { required: true, message: '请输入书名', trigger: 'blur' },
                    ],
                    author: [
                        { required: true, message: '请输入作者', trigger: 'blur' },
                    ],
                }
            };
        },
        methods: {
            // 提交表单
            submitForm(formName) {
                const _this = this
                this.$refs[formName].validate((valid) => {
                    if (valid) {
                        axios.put('http://localhost:8181/book/update',this.ruleForm).then(function(resp){
                            if(resp.data == 'success'){
                                _this.$message({
                                    message: '《'+_this.ruleForm.name+'》'+'修改成功',
                                    type: 'success'
                                })
                                _this.$router.push('/book-manage')
                            }
                        })
                    }
                });
            },
            resetForm(formName) {
                this.$refs[formName].resetFields();
            }
        },
        // 填入初始信息
        created(){
            // 是route不是router!
            // alert(this.$route.query.id)
            const _this = this
            axios.get('http://localhost:8181/book/findById/'+this.$route.query.id).then(function(resp){
                _this.ruleForm = resp.data
            })
        }
    }
</script>

一点想法

Spring Boot + Vue 真是好方便

后端基本不用写什么，要用的方法都有

前端要什么模版直接在element ui里找来用

跟着敲这个demo的时候碰到的坑基本都是和路由有关的，router转来转去有点晕

但是 总之

我真的从来没有在哪个教程听见这么多“就行了”、“自动”、“不用管了”…极度舒适！有架子不用徒手爬墙真好
